COB LED Poster Display: Transform Indoor Branding with UHD &
Agility
Step into the future of indoor advertising with our COB LED
Poster—an innovation that combines Flip Chip on Board technology,
ultra-high definition, and real-time content management. Designed
for brands that demand excellence, it's the key to capturing
attention, driving engagement, and staying ahead of trends.
Core Features
Visual Brilliance The display's wide color gamut, sharp resolution, and 170°/155°
viewing angles ensure your brand's message is seen clearly and
vibrantly from every corner of the room.
Agile Promotion Update content anytime, anywhere—via USB, WiFi, or cloud
clustering. Launch flash sales, announce events, or adjust
messaging on the fly to stay timely and relevant.
Eco-Friendly Efficiency LED technology reduces power usage and extends lifespan, making it
a sustainable choice that lowers operational costs over time.
Technical Parameters
| Parameter Category | P1.25 | P1.56 | P1.875 |
|---|
| Pixel Pitch (mm) | P1.25 | P1.56 | P1.875 |
| Screen Size (mm) | 600×1687.5 | 600×1687.5 | 600×2025 |
| Configuration (W×H, per screen) | 480×1350 pixels | 384×1080 pixels | 320×1080 pixels |
| Number of Cabinets (W×H, per screen) | 5 | 5 | 6 |
| Weight (per screen) | 25kg | 25kg | 30kg |
| LED Type | Flip-chip COB LED |
| Brightness (Max.) | 600 nits |
| Contrast Ratio | 10,000:1 |
| Viewing Angle - Horizontal/Vertical | 170°/155° |
| Bit Depth | 16 bit (internal processing 22 bit) |
| Color Temperature - Adjustable | 2,800K~10,000K |
| Input Power Range | 100~240VAC, 50/60Hz |
| Power Distribution (Max.) | 320 W/Screen |
| Power Distribution (Avg.) | 100 W/Screen |
| Resolution | 3,840 Hz |
| Working Temperature / Humidity | 0°C-+40°C / 10%-80%RH |
| Storage Temperature / Humidity | -20°C~+45°C / 5%-95%RH |
| LED Lifetime | 100,000 hours |
| Controller | Built-in |
| Maintenance Method | Front service |
| Interface | Multiple expansion ports, such as USB port, HDMI, audio, etc. |
Technical Highlights

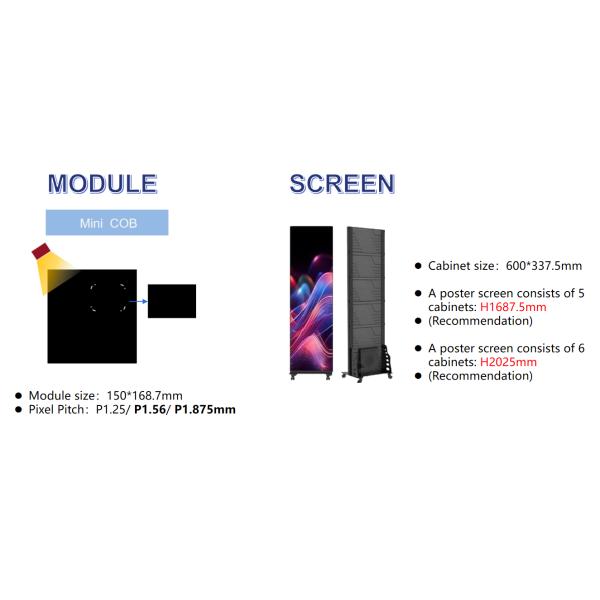

Pixel Pitch & Configuration: P1.25: 5 cabinets (600×1687.5mm, 480×1350 pixels)
P1.56: 5 cabinets (600×1687.5mm, 384×1080 pixels)
P1.875: 6 cabinets (600×2025mm, 320×1080 pixels)
Durability & Maintenance: Front-service design for easy repairs, with a rugged build that
withstands daily indoor use.

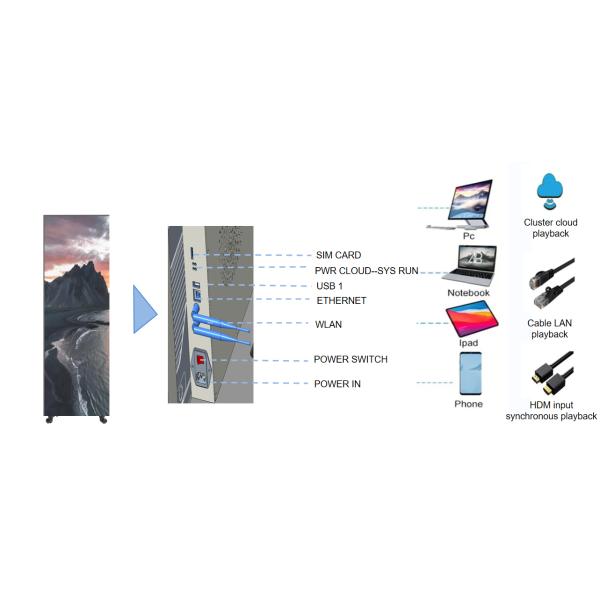

Control & Connectivity: Multiple ports (HDMI, USB, audio) and control modes (sync/async,
cloud, wireless) support diverse content strategies.
Applications
Retail Chains: Standardize branding and promotions across multiple locations with
centralized content management.
Corporate Offices: Communicate company news, metrics, or culture in lobbies and
common areas.
Educational Institutions: Display event calendars, campus maps, or student achievements in
universities and schools.
