Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22

Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22


APPLICATION

  • Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22‌ is a type of ‌armored control cable‌ designed for fixed installations in environments requiring mechanical protection, such as cable trenches, direct burial, and indoor applications with high mechanical stress‌.
  • It is commonly used in ‌industrial plants, power stations, and automation systems‌ where protection against mechanical damage is essential‌

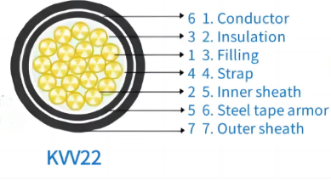

CONSTRUCTION

  • Conductor

    Circular solid copper conductor(A) or circular stranded copper conductor(B)

  • Insulation

    Polyvinyl chloride (PVC)

  • Filler

    Polypropylene(PP) mesh filling rope

  • Armouring

    Galvanized steel tape

  • Outer sheath

    Polyvinyl chloride (PVC)





CHARACTERISTIC

  • Voltage Rating Uo/U: 450/750V
  • Temperature Rating
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -15℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)

SPECIFICATION

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

2×0.5

0.85

0.6

1.5

10.6

156.5

2×0.5(B)

0.90

0.6

1.5

10.7

159.2

2×0.75

1.02

0.6

1.5

11.0

168.8

2×0.75(B)

1.10

0.6

1.5

11.1

172.9

2×1

1.16

0.6

1.5

11.2

179.7

2×1(B)

1.29

0.6

1.5

11.5

186.2

2×1.5

1.41

0.7

1.5

12.2

211.5

2×1.5(B)

1.56

0.7

1.5

12.5

219.2

2×2.5

1.76

0.8

1.5

13.4

260.4

2×2.5(B)

2.04

0.8

1.5

13.8

272.6

2×4

2.22

0.8

1.5

14.3

310.7

2×4(B)

2.55

0.8

1.5

14.9

25.1

2×6

2.74

0.8

1.5

15.3

371.7

2×6(B)

3.10

0.8

1.5

16.0

388.9

2×10

4.00

1.0

1.5

18.6

533.9

3×0.5

0.85

0.6

1.5

11.0

171.2

3×0.5(B)

0.90

0.6

1.5

11.1

174.4

3×0.75

1.02

0.6

1.5

11.3

186.5

3×0.75(B)

1.10

0.6

1.5

11.5

191.4

3×1

1.16

0.6

1.5

11.6

200.6

3×1(B)

1.29

0.6

1.5

11.9

208.0

3×1.5

1.41

0.7

1.5

12.6

240.0

3×1.5(B)

1.56

0.7

1.5

12.9

248.8

3×2.5

1.76

0.8

1.5

13.9

02.4

3×2.5(B)

2.04

0.8

1.5

14.4

316.5

3×4

2.22

0.8

1.5

15.0

369.0

3×4(B)

2.55

0.8

1.5

15.5

385.7

3×6

2.74

0.8

1.5

16.0

451.0

3×6(B)

3.10

0.8

1.5

16.7

470.8

3×10

4.00

1.0

1.5

19.6

662.2

4×0.5

0.85

0.6

1.5

11.5

190.5

4×0.5(B)

0.90

0.6

1.5

11.6

194.2

4×0.75

1.02

0.6

1.5

11.9

209.6

4×0.75(B)

1.10

0.6

1.5

12.1

215.0

4×1

1.16

0.6

1.5

12.3

226.9

4×1(B)

1.29

0.6

1.5

12.6

235.4

4×1.5

1.41

0.7

1.5

13.4

275.1

4×1.5(B)

1.56

0.7

1.5

13.7

285.6

4×2.5

1.76

0.8

1.5

14.9

352.8



Contact us for more details

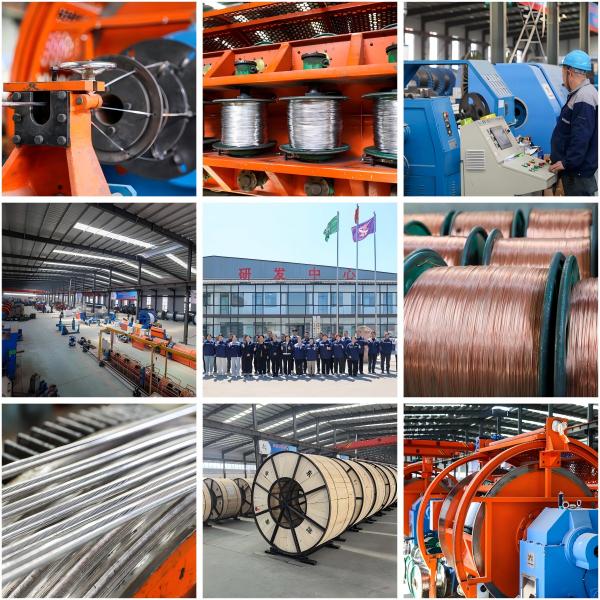

OUR FACTORY

PROJECTS

PVC Insulated Power Cable Steel Tape Wire Armoured PVC Sheathed Electrical Power Wire 4


APPLICATION


WHY US


Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v 5


FAQ


1.You are manufacturer or trader ?

We are a professional ISO certified cable manufacturer with more than 20 years experience.

2.How can I get the quotation of the products ?

Pls send your inquiry to us,our sales manager will offer you within 12 hours.

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality. 2) Professional and skillful workers care every details in handling the producing. 3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.Our engineers will give you the professional suggestions.

5.What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
