Siemens SINAMICS S120 CU310 DP Control Unit (with PROFIBUS interface, 24V DC supply)

Siemens 6SL3040-0LA00-0AA1 Overview

The Siemens SINAMICS S120 CU310 DP (6SL3040-0LA00-0AA1) is a compact, high-performance control unit designed for the SINAMICS S120 drive system. It serves as the core for coordinating single-axis drive applications (e.g., conveyors, pumps, or basic motion tasks), integrating drive control, I/O processing, and communication via a PROFIBUS DP interface (for seamless integration into PLC-based automation networks).

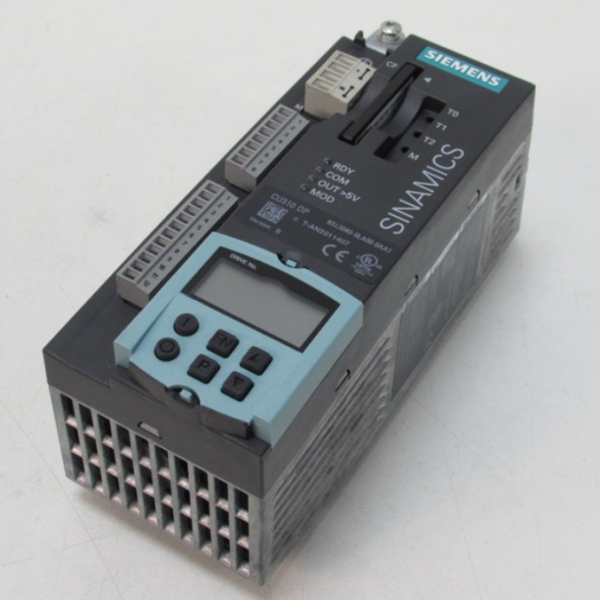

Figure 1 shows the front panel of 6SL3040-0LA00-0AA1.
























Quick Specs.

Table 1 shows the Quick Specs.


ItemSpecification
ManufacturerSiemens
Product TypeCU310 DP Control Unit
Operating Voltage24 V DC
Digital I/O4 floating inputs; 4 bidirectional I/O
Encoder SupportTTL/HTL incremental encoders
Weight~0.95 kg





Detailed Specification

CategoryDetails
Power Supply- Voltage: 24 V DC

- Max Current: 0.35 A (CU310 DP) + 0.5 A (PM340)
Digital Inputs- Voltage Range: -3 to +30 V

- Response Time (Fast): 5 µs (L→H) / 50 µs (H→L)
Digital Outputs- Voltage: 24 V DC

- Max Load Current: 500 mA per channel
Encoder Interface- Cable Length: 100 m (unipolar) / 300 m (bipolar, HTL)

- Cut-off Frequency: 500 kHz
Physical- Dimensions: 73 mm (W) × 183.2 mm (H) × 89.6 mm (D)

- Power Loss: <20 W
CertificationsCE, cULus
