8000mm Welding Manipulator Column And Boom Welding Machine For Pressure Vessels

8000mm Welding Manipulator Column And Boom Welding Machine For Pressure Vessels

8000mm Welding Manipulator Column And Boom Welding Machine For Pressure Vessels
8000mm Welding Manipulator Column And Boom Welding Machine For Pressure Vessels
Categories Welding Manipulator
Brand Name: Lemar
Model Number: HJ8080
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: 500-10000usd
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10 set/month
Delivery Time: 20 days
Packaging Details: Export standard package
Other Name: Cross welding manipulator
Column effective stroke: 8000mm
Boom effective stroke: 8000mm
Welding: Surbmerged arc welding/MIG welding/TIG Welding
Suitable tanks diameter: 700-6500mm
Optional: Welding rotator or welding positioner
Duration: 20 days
Monitor: Optional
Movable: Yes or no/Customized
Trolley: Optional
Contact Now
Company Info.
Wuxi Lemar Machinery Equipments Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

8000mm Welding Manipulator Column And Boom Welding Machine For Pressure Vessels

HJ8080 Submerged Arc Column and Boom Welding Manipulator
The HJ8080 Submerged Arc Column and Boom Welding Manipulator for Pressure Vessels with Weld Seam Tracking transforms welding operations from physical labor to monitoring tasks, elevating welders from operators to supervisors.
This advanced system utilizes an 8-meter crossbeam that extends deep into vessel shells, precision guide rails to support the welding torch, an intelligent tracking system to detect weld seams, and monitoring devices to transmit real-time images. The integrated system makes the most challenging aspects of large pressure vessel manufacturing controllable, measurable, and optimizable.
Technical Specifications
ModelHJ-2020HJ3030HJ4040HJ4050HJ5050HJ6060HJ7070HJ8080
Column Effective Stroke2000mm3000mm4000mm4000mm5000mm6000mm7000mm8000mm
Boom Effective Stroke2000mm3000mm4000mm5000mm5000mm6000mm7000mm8000mm
Additional Specifications
  • Lift Speed: 600mm/min
  • Expansion Speed: 100-1000mm/min
  • Trolley Type: Fixed or Movable
  • Welding Monitor: Available
  • Welding Source: TIG / Submerged Arc Welding / MIG Welding
  • Trolley: With or Without
  • Rotation: Electric Type or Manual type according to customer request
  • Welding Tracking: Customized
  • Voltage: 380V or Customized
Key Features
Remote Monitoring & Human-Machine Separation
Traditional cylinder welding requires welders to rotate with the workpiece while enduring fumes and arc light in confined spaces. The HJ8080 features remote monitoring capabilities, allowing operators to observe welding torch operations in real-time through periscopes or cameras at external control consoles. This human-machine separation improves working conditions and enables operators to work more comfortably, resulting in more consistent welding quality.
Fume Treatment & Health Protection
When using gas metal arc welding (GMAW), welding fumes present significant health concerns. The equipment can be equipped with a comprehensive fume extraction and dust removal system featuring a fume hood installed near the welding torch, connected to a vacuum cleaner via ducting. This configuration is essential for protecting operator health during extended welding operations on pressure vessels and similar workpieces.
Arc Light Protection for Clear Observation
High-brightness arc light often obscures clear view of the molten pool. The HJ8080 can be equipped with an automatic high-light shielding device installed in front of monitoring lenses to effectively reduce arc light interference, enabling operators to clearly observe weld formation and quality.

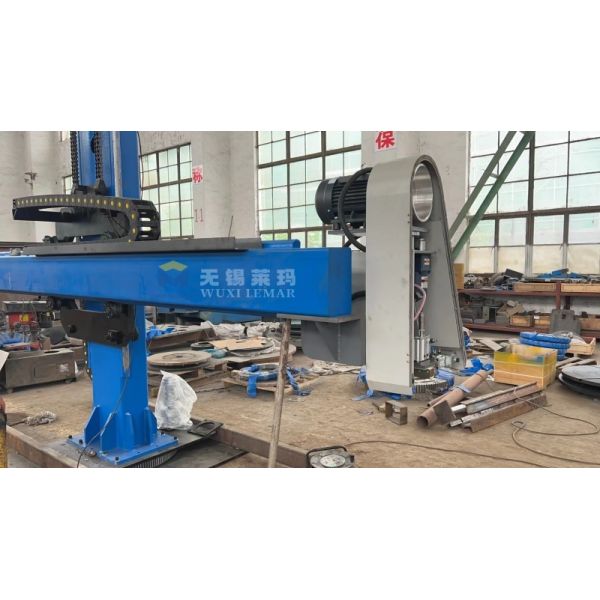

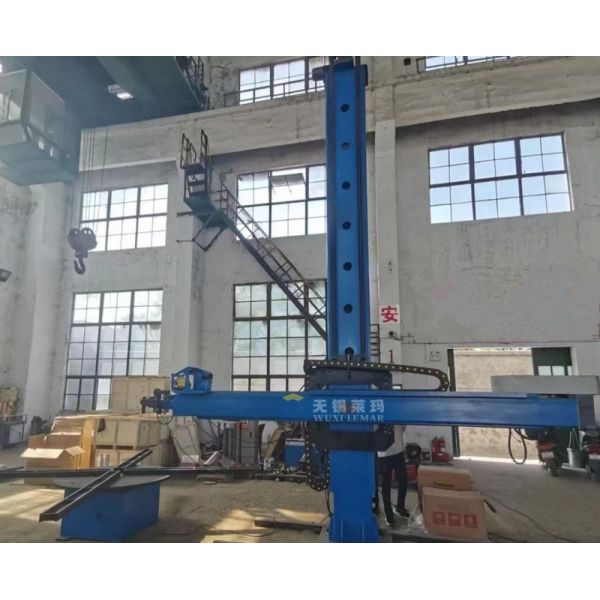

HJ8080 Submerged Arc Column and Boom Welding Manipulator in operation Close-up view of welding torch and tracking system on HJ8080 manipulator
