Single-Screw PPR Pipe Extrusion Machine with Vacuum Calibration for Drip Irrigation Pipes

Categories PPR Pipe Extrusion Line
Payment Terms: L/C,T/T
Automatic: Full Automatic
After sales Service: Engineer Overseas Service
MATERIAL: PPR PE PP PVC
Brand Name: LB
Model Number: LB
Certification: CE / ISO
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: NORMAL PACKAGE
Screw Design: single-screw
Condition: New
Application: Pipe
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single-Screw PPR Pipe Extrusion Machine with Vacuum Calibration for Drip Irrigation Pipes

Plastic PPR Water Drainage Pipe Extruder Agricultural Drip Irrigation Pipes Extrusion Making Machine

This Plastic Pipe Extrusion Machine is primarily designed for manufacturing agricultural, water supply, drainage pipes, architectural water supply/drainage pipes, and cable laying pipes. The production line incorporates advanced design principles to ensure efficient extrusion of PPR powder, combined with unique plasticization screw design for uniform plastic extrusion and high-capacity production.

Production Line Components
  • SJZ series conical twin screw extruder
  • Mould system
  • Vacuum cooling tank
  • Spray cooling tank (for large diameter pipes)
  • Haul-off machine
  • Cutting machine
  • Stacker

Additional auxiliary equipment includes hot & cooling mixer (essential), crusher, milling machine, and belling machine (optional).

PPR Pipe Production Line Specifications
ModelPipe Range (mm)Water Pumps (kw)Vacuum Pumps (kw)Length of Vacuum Calibration Tank
6316-6332.26000
63-s16-632*32*2.21500+8500
12532-1255.541500+10500
25063-2505.541500+10500
450110-4502*5.52*41500+10500
500160-5002*5.52*41500+10500
630250-6302*5.52*41500+10500
800315-8003*7.53*5.51500+10500
1200630-12006*7.56*41500+10500
1400710-14006*7.56*41500+10500
16001000-16006*7.56*41500+10500
20001400-20008*7.56*5.51500+10500
Production Process
  1. Raw Material Feeding: PPR granules or recycled plastic are fed into the extruder hopper. Optional drying system ensures moisture-free material for superior quality.
  2. Melting & Extrusion: The screw barrel heats and melts plastic at controlled temperatures (160°C-220°C). Molten plastic is pushed through the die head to form pipe shape.
  3. Vacuum Calibration & Cooling: Pipe passes through vacuum sizing tank for precise diameter and roundness. Cooling tanks (water bath or spray cooling) solidify the pipe for stability.
  4. Hauling & Cutting: Haul-off unit pulls pipe at consistent speed. Automatic cutter slices pipe into desired lengths.
  5. Printing & Coiling (for Drip Irrigation Pipes): Laser or inkjet printing marks specifications. For drip pipes, perforation and coiling may be added before packaging.
  6. Quality Inspection & Packaging: Pipes are checked for wall thickness, pressure resistance, and smoothness. Final products are packed in coils or straight bundles for shipping.
Machine Images

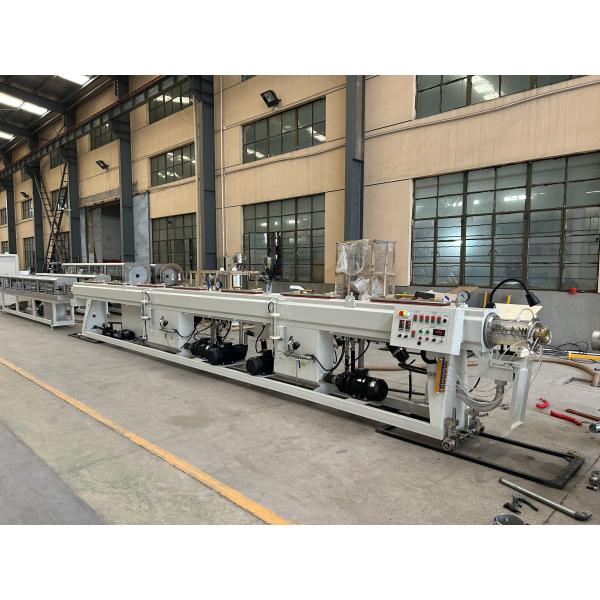

PPR pipe extrusion machine production line overview
Close-up view of pipe extrusion die head

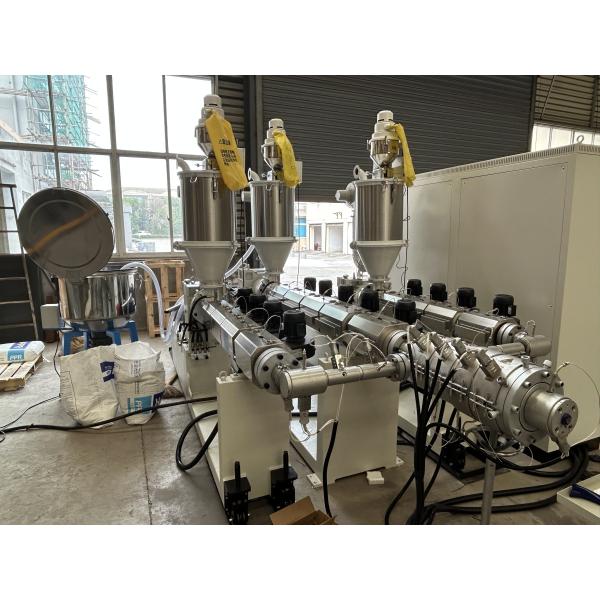

Vacuum calibration and cooling system

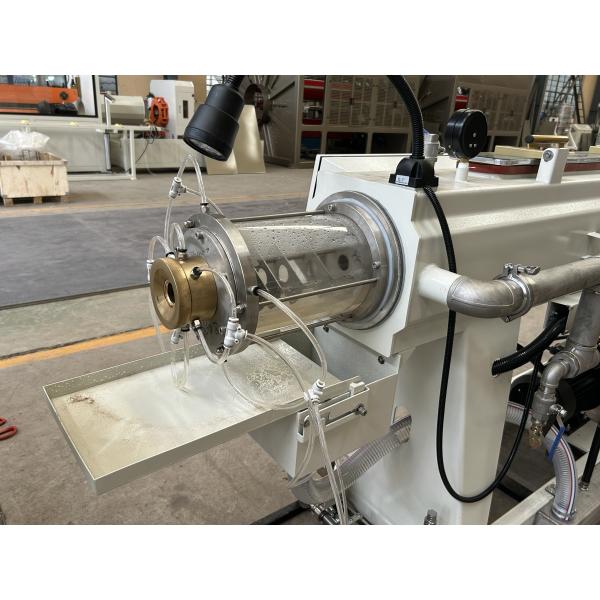

Haul-off and cutting mechanism

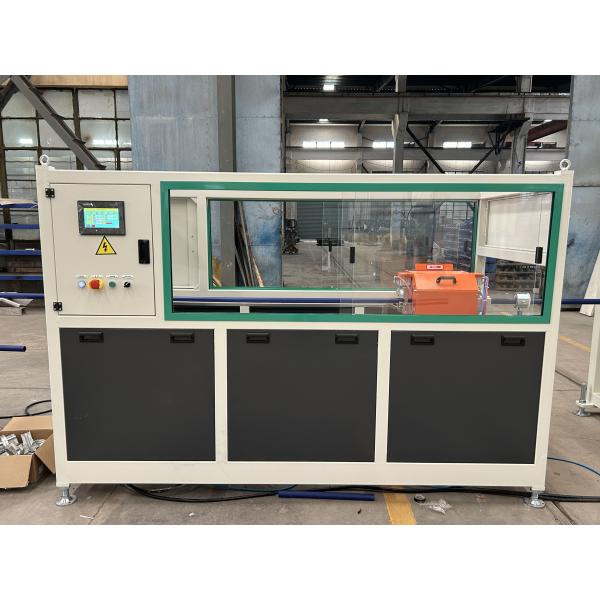

Control panel and monitoring system

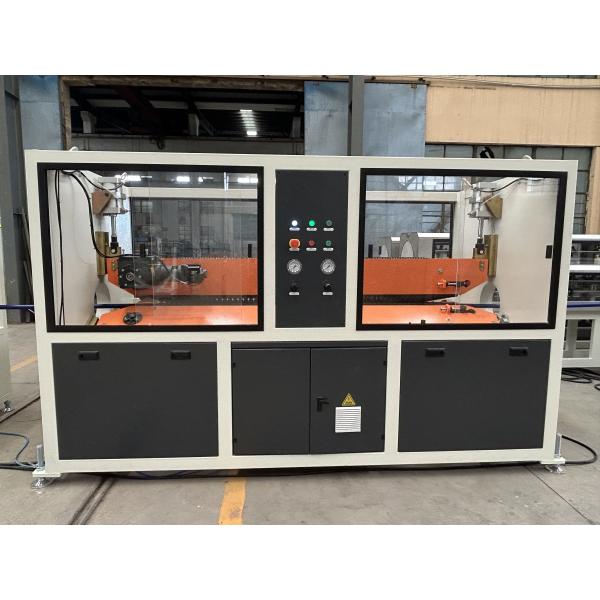

Finished pipe quality inspection
Pre- and After-Sale Services
  • Extensive industry experience and expertise
  • Consistent focus on highest quality standards
  • Complete twin pipe vacuum sizing system
  • Independently controlled unitary structure twin pipe hauling mechanism with synchronous cutting device
  • Optional length set and accurate adaptation stacker
  • Highly motivated and skilled technical team
  • Sophisticated process technology
  • Customized solutions tailored to specific requirements
Company Overview
Our manufacturing facility and factory overview
Our exhibition booth and industry events participation
Our goods shipping and logistics process
