| Categories | Industrial Drying Equipment |
|---|---|
| Brand Name: | YIGAN |
| Model Number: | PLG |
| Place of Origin: | CHINA |
| Application: | for powder or granules drying |
| Material: | 304SS or 316L |
| Heating type: | jacket heating |

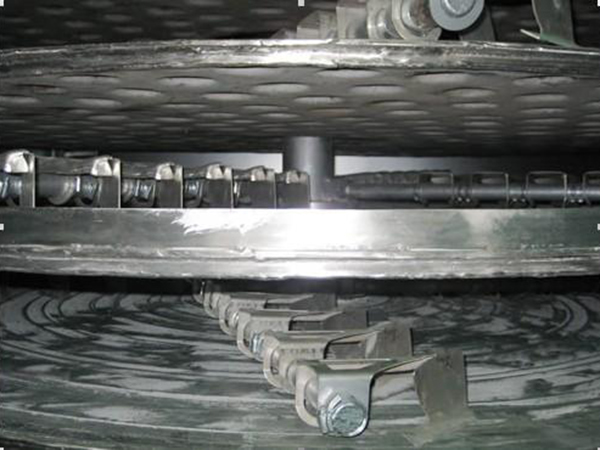

The PLG series continuous plate dryer is a high efficiency conduction and continuous drying machine that features a unique structure with low energy consumption during operation. It is often used in the drying process of chemical pharmaceutical, agricultural and food industries. The plate dryer has normal pressure, closed and vacuum styles to choose from. With a drying area of 4 to 180 square meters, we have a full range of options and auxiliary devices available to meet your requirements.
1. Wide application options.
2. Simple operation.
3. Low energy consumption.
4. The drying equipment can recover solvents and powder discharged
during operation.
5. Easy installation and small occupying area.
| Model | 50 | 100 | 150 | 200 | 300 | 500 | 1000 | ||
| Evaporated amount(kg/h) | 50 | 100 | 150 | 200 | 300 | 500 | 1000 | ||
| d(mm)ΦxH | 1200 x8900 | 1800x 11500 | 2200x 13500 | 2400x 14800 | 2800x 15400 | 3400x 18800 | 4600x 22500 | ||
| Power(KW) | 8.5 | 14 | 22 | 24 | 30 | 40 | 82 | ||
| Inlet air temperature(°C) | 300-350 | ||||||||
| Water content (%) | < 5(0.5) | ||||||||
| Yield (%) | >97 | ||||||||
| Heating by Electricity(KW) | 75 | 120 | |||||||
| Evaporation and Electricity(Mpa+KW) | 0.5+54 | 0.6+90 | 0.6+108 | Temperature is below 200°C,calculating in accordance with pratical situation | |||||
| Furnace(Kcal/h) | 150000 | 300000 | 300000 | 400000 | 600000 | 1000000 | 1500000 | ||
|
