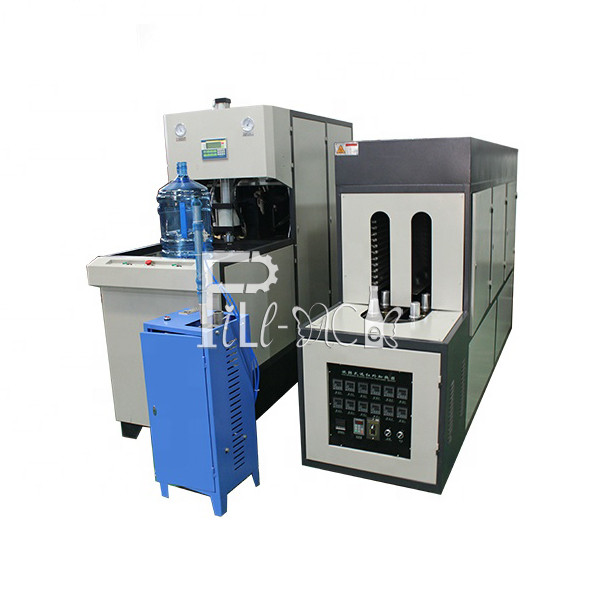

Manual perform 5 gallon bottle blow molding plant for capacity 120BPH
5 gallon bottle blow molding plant main Features:
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.
5 gallon bottle blow molding plant main Parameter:
| Model | FP-120 | ||
| Container | Product material | / | PET |
| Volume | L | 20(5gallon) | |
| Theoretical output | PCS/H | 60-180 | |
| Height | MM | ≤500 | |
| Preform inner diameter | MM | ≥φ16 | |
| Mould | Max.mould plate Diameter(L * W) | MM | 420*500 |
| Max.mould thickness | MM | 400 | |
| Clamping force | KN | 330 | |
| Mould opening stroke | MM | 318 | |
| Machine size and weight | Main machine (L * W * H) | MM | 2180*770*1960 |
| Main machine weight | KG | 1000 | |
| Heater (L * W * H) | MM | 2370*680*1650 | |
| Heater weight | KG | 380 | |
| Power | KW | 40 | |
The Bottle Mold
1. The mold's raw material is #45 steel or 7075 Aircraft Aluminum.
chrome plating on the surface,avoid rust.
2. Bottle design is customizable.
|
