| Categories | Coaxial RF Directional Coupler |
|---|---|
| Brand Name: | ZD |
| Model Number: | ZD-DC-727-200-20DF |
| Certification: | RoHS |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 10000pcs one month |
| Packaging Details: | Standard exporting cartons or as customer required |
| Delivery Time: | 3-15 days |
| Connector: | DIN-female |
| Material: Cavity: | Aluminum silver-plated |
| Environment: | Outdoor |
| Intermodulation: | < -150dBc @ 2 x 43dBm |
| Frequency: | 698-2700MHz |
| Impedance: | 50Ω |
| Company Info. |
| SHENZHEN ZD TECH CO., LTD |
| View Contact Details |
| Product List |
698 - 2700MHz 7/16 Din Female 20dB Coaxial RF Directional Coupler
● Low Insertion Loss
● High power handing
● Low PIM Low VSWR
● DIN-Female connecters
Packaging Details: Standard exporting cartons or as customer required
Delivery Time: 1-4 weeks after getting advanced payment
Frequency | 698-2700MHz |
Specifications | 20dB |
Attenuation | ±1.5 |
Insertion loss | <0.3 |
VSWR | >1.25 |
Isolation | >50 |
Power handling | 500 W |
Impedance | 50 Ohm |
Intermodulation | < -150dBc @ 2 x 43dBm |
Operating temperature | -40°C to +75°C |
Storage temperature | -40°C to +85°C |
Colour | Black / gray |
Relative Humidity | 5% - 95% |
Applications | IP65 |
Connectors type | DIN-Female |
Weight | 0.58Kg |

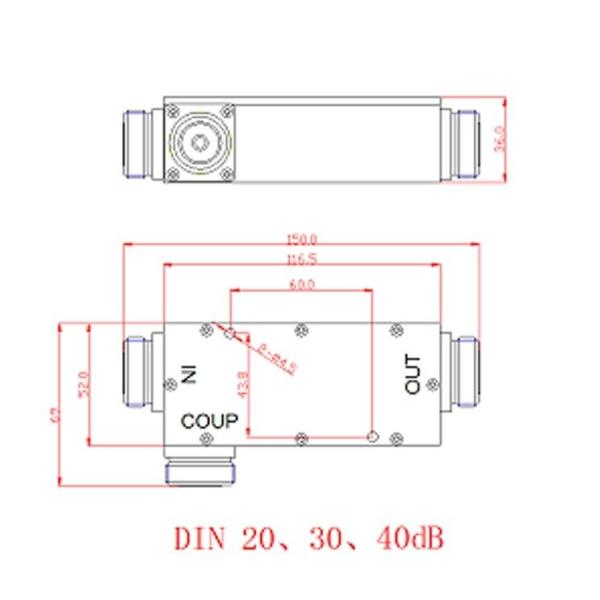

Outer Dimension | 150*69*36mm |

|
