OEM Adult CPR Manikin / Advanced PVC Full - body Emergency Simulation

OEM Advanced PVC First Aid Manikins with CPR for Hospitals , Colleges , Schools

Specifications:

Description:
GD/ACLS8000C is the world leading man-machine interaction ACLS training simulation system, can
simulate real emergency scenes and all the related signs of emergency patient, such as: pupil states,
artery pulse, heart rhythm, heart and lung auscultation sound, etc. All the clinical emergency measures
such as defibrillation, pacing, CPR, drug therapy, etc, and real clinical emergency instrument can be
acted on the system. The manikin would show different vital signs change according to different rescue
measures. Open case editing function allows lecturer edit required emergency cases according to clinical
practice and teaching requirement for students’ training use. Interactive internet features can implement
whole students teaching; lecturer can acquire students’ operation data easily and timely give correction
and guidance.


Features:

★ This sign indicates that the functions can be run only when the manikin is used with the optional
accessories
Head and Neck:
1. Vital signs simulation: pupil observation, LCD pupil display, diameter range: 1-9mm; Spontaneous
carotid artery pulse, vivid reproduction of patient moaning, coughing and vomiting sound;
2. Many respiration modes: normal breath, sighing breath, Cheyne-stokes breath, Kussmaul-kien respiration and Biot’s respiration;
3. Airway management: standard oral and nasal intubation, tracheotomy; detect intubation position via
auscultation;
Chest and Abdomen:
1. CPR operation training: provide multiple ventilation ways: mouth to mouth, mouth to nose, BVM to mouth;
electronic monitoring of airway open, inflation times, frequency, volume and compression times, frequeny,
position and depth; English voice prompts during the entire process; after successful rescue, pupil
statechange to normal and restore spontaneous carotid artery pulse;
★ Real defibrillation Training
★ Simulative defibrillation and pacing: multimedia animation displays the operation process of medical
defibrillator; used with GD/J880 simulative defibrillating pacer to achieve defibrillation and pacing;
defibrillation energy is selectable
★ Real AED Training
★ Simulative AED: multimedia animation displays AED operation process; be used with GD/AED99F
automatic external defibrillation machine to achieve AED training;
★ Real ECG monitoring: supporting different manufacturers and types of ECG monitor, which can achieve
★ Simulative ECG monitoring: Monitor blood oxygen with finger-piece blood detecting head; simulative
ECG monitoring can be achieved while using with GD/J115 simulative multi-parameter ECG monitor; available of thousands of ECG,
2. Auscultation: Provides dozens of sounds, including normal heart sound, abnormal heart sound, normal
breath sound, abnormal breath sound, normal bowel sound, abnormal bowel sound;

Limbs:
■ BP measurement, venipuncture and vastus lateralis intramuscular injection; highly realistic arm vein; a
discernable “pop” can be felt when entering the veins and blood flash back indicating proper insertion;
skin and blood vessel is replaceable;

Software:
1. Simulative injection pump/infusion pump usage: Multimedia animation shows the operation procedures
of injection pump and infusion pump; drugs can be selected while operation
2. Training and examination supporting ECG, emergency scenes, cases, CPR training and examination.
3. Emergency scenes script training /assessment: Dozens of emergency scenes are available, these will
help physicians practice emergency operation procedures of different cardiac diseases.
4. Provide multiple drug treatment and typical auxiliary examination, chest x-ray, ultrasound ECG and
12-lead ECG, etc; Drugs can be added by user-self.
5. Script/cases editing: emergency cases can be edited by user self; pathogenetic condition changes and
students operation process will be recorded in the software
6. Operate PETCO2: confirm tracheal intubation position and monitor the validity of resuscitation

operation

Components:

Hardware
1. ACLS Full-body manikin
2. GD/HS7 BP Measuring Unit
3. ACLS functional connector.
4. Laryngoscope
5. Tracheal canola
6. Transfusion set
7. BVM
8. Auscultator

Software
1. ACLS Training Software V2.0
2. ACLS Script Editing Software V2.0


Optional Accessories:
1. Real Cardiac Defibrillating Pacer
2. GD/J880 Simulative Cardiac defibrillating pacer
3. Real AED
4. GD/AED99FAutomatic External Defibrillation Simulator
5. Real ECG Monitor
6. GD/J115 Simulative Multi-parameter ECG Monitor
7. Video monitoring equipment
8. Computer
9. Computer control console
10. Stainless steel control
11. Rescue operation console

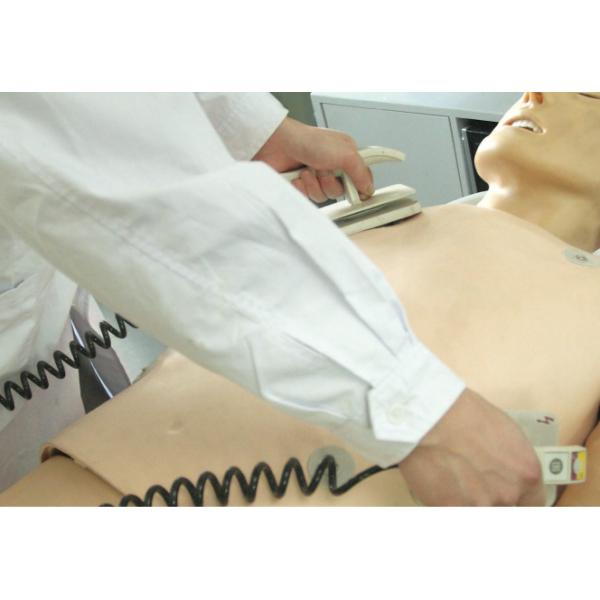

Picture Show:
